Thermal Print Head

BARCODE LABEL PRINTER

INDUSTRIAL LOGISTICS MODEL

Feature
We provide high speed, high durability, high reliability thermal print head for bar code label printer for industry and logistics system. High resolution for micro label. High durable coating structure for large quantities printing.
Model Name Print width
(mm)
Heater resolution
(dpi)
Number of Heater
(dots)
Head average resistance
(Ω)
Head resistance dispersion
(%)
Logic power supply
(V)
Platen roller diameter
(φmm)
Glaze structure Outline (*)
WxLxH
(mm)
G5206D 108 203 864 800±12% ±8% 3.3/5 Recommendation
φ14
PEG 21x118x5
[Feature]
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5138G 108 203 864 880±6% ±8% 3.3/5 Recommendation
φ14
PEG 25x118x5
[Feature]
  • Compact size by U-SHAPE heater.
G5138M 108 203 864 780±6% ±8% 3.3/5 Recommendation
φ14
PEG 25x118x5
[Feature]
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5140F 104 203 832 726±12% ±8% 3.3/5 Recommendation
φ20
PEG 46x118x6
[Feature]
  • Standard Type.
G5329C 104 203 832 600±8% ±8% 3.3/5 Recommendation
φ20
PG 46x118x6
[Feature]
  • Low resistance version of G5140F.
  • High-speed printing by step-less structure.
G5266B 104 203 832 800±12% ±8% 3.3/5 Recommendation
φ16.7
PG 30x125x6
[Feature]
  • Near edge structure.
  • Hot peeling of ribbon.
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5292E 105.7 300 1248 1250±6% ±8% 3.3/5 Recommendation
φ16
PEG 21x118x5
[Feature]
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5139G 106 300 1248 1500±6% ±8% 3.3/5 Recommendation
φ18
PEG 25x118x5
[Feature]
  • Compact size by U-SHAPE heater.
G5139L 106 300 1248 1500±6% ±8% 3.3/5 Recommendation
φ18
PEG 25x118x5
[Feature]
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5141F 105.7 300 1248 1130±12% ±8% 3.3/5 Recommendation
φ20
PEG 46x118x6
[Feature]
  • Standard Type.
G5330C 105.7 300 1248 1000±8% ±8% 3.3/5 Recommendation
φ20
PG 46x118x6
[Feature]
  • Low resistance version of G5141F.
  • high-speed printing by step-less structure.
G5267A 106.6 305 1280 1000±12% ±8% 3.3/5 Recommendation
φ16.7
PG 30x125x6
[Feature]
  • Near edge structure.
  • Hot peeling of ribbon.
  • High durable coating.
  • Compact size by U-SHAPE heater.
G5228A 105.6 600 2496 1800±12% ±8% 5 Recommendation
φ20
PEG 46x118x6
[Feature]
  • High-quality printing by 600dpi resolution.
G5228B 105.6 600 2496 1800±12% ±8% 5 Recommendation
φ20
PEG 46x118x6
[Feature]
  • High-quality printing by 600dpi resolution.
  • High durable coating.
G5331B 105.6 600 2496 1500±10% ±8% 3.3/5 Recommendation
φ20
PEG 46x118x6
[Feature]
  • High-quality printing by 600dpi resolution.
  • High speed printing.
  • 5 step history control IC installed.
G5213 168 203 1344 800±12% ±8% 3.3/5 Recommendation
φ20
PEG 46x187x10
[Feature]
  • Compact size by U-SHAPE heater.
G5214 168 300 1984 1000±12% ±8% 3.3/5 Recommendation
φ20
PEG 46x187x10
[Feature]
  • Compact size by U-SHAPE heater.
BHP4A01SS 256 203 2048 800±12% ±8% 5 MAXφ20 PG 46x274x10
[Feature]
  • Suitable for B4size thermal transfer printer.
BHP9407FS 112 609 2688 3500±12% ±8% 5 Recommendation
φ20
PG 44x120x6
[Feature]
  • High-quality printing by 600dpi resolution.
  • High speed printing.
  • 5 step history control IC installed.

To Top


FOOD MODEL

Feature
By optimizing the structure of coating, we provide a reliable and highly durable thermal print head that can print labels without a backing sheet and film labels used in food factories, packing centers, etc. Moreover, it provides high-speed and high-quality printing by history control IC.
Model Name Print width
(mm)
Heater resolution
(dpi)
Number of Heater
(dots)
Head average resistance
(Ω)
Head resistance dispersion
(%)
Logic power supply
(V)
Platen roller diameter
(φmm)
Glaze structure Outline (*)
WxLxH
(mm)
BHP4249FS 56 203 448 600±12% ±8% 5 MAXφ20 PG 45x65x6
[Feature]
  • High-quality printing.
  • High speed printing.
  • 5-step history control IC installed.
G5201F 56 203 448 960±12% ±8% 5 Recommendation
φ12
PEG 18x66x5
[Feature]
  • High durable coating.
  • High reliability against corrosion.
  • Compact size by U-SHAPE structure.
BHP6214HS 59 305 704 1500±12% ±8% 5 Recommendation
φ20
PG 38x70x8
[Feature]
  • High-quality printing.
  • High speed printing.
  • 3-step history control IC installed.
G5279C 80 203 640 850±12% ±8% 3.3 to 5.0 Recommendation
φ15
PG 21x87x5
[Feature]
  • High durable coating.
  • High reliability to corrosion.
  • Compact size by U-SHAPE structure.
LH4114WK 80 203 640 800±12% ±8% 5 Recommendation
φ20
FG 38x91x6
[Feature]
  • Thin glaze structure.
  • Improved heat accumulation.
G5364A 81 300 960 1200±6% ±8% 3.3 to 5.0 Recommendation
φ15
PG 21x91x5
[Feature]
  • High durable coating.
  • High reliability to corrosion.
  • Compact size by U-SHAPE structure.

To Top

TAG & TICKET PRINTER

Feature
TPH with straight path structure can print on thick media, such as thick tickets and electronic tags . Moreover, it provides high-speed and high-quality printing by history control IC.
Model Name Print width
(mm)
Heater resolution
(dpi)
Number of Heater
(dots)
Head average resistance
(Ω)
Head resistance dispersion
(%)
Logic power supply
(V)
Platen roller diameter
(φmm)
Glaze structure Outline (*)
WxLxH
(mm)
BHC4215SS 56 203 448 970±15% ±10% 5 Recommendation
φ20
PG 23x65x7
[Feature]
  • Convex ceramics structure.
  • Straight path.
BHP6212FS 53 305 640 1500±12% ±8% 5 MAXφ20 PG 45x80x6
[Feature]
  • High-quality printing.
  • High speed printing.
  • 5-step history control IC installed.
BHC4262FR 56 203 448 450±15% ±10% 5 Recommendation
φ20
PG 19x70x24
[Feature]
  • High-quality printing.
  • High speed printing.
  • 5-step history control IC installed.
DHP9203FS 58.67 610 1408 2500±12% ±8% 5 MAXφ20 PG 44x69x6
[Feature]
  • High-quality printing by 600dpi resolution.
  • High speed printing.
  • 5 step history control IC installed.
LH6404LK 128 305 1536 1500±12% ±8% 5 MAXφ20 PG 38x140x6
[Feature]
  • High-quality printing.
  • High speed printing.
  • 3-step history control IC installed.

To Top

CARD PRINTER

Feature
Straight pass ,by near-edge structure and structure using convex ceramics, enable to print on firm media like plastic card. It provides high-quality color printing to dye diffusion thermal transfer system by optimizing heater substrate.
(Convex ceramic structure needs costumise support.)
Model Name Print width
(mm)
Heater resolution
(dpi)
Number of Heater
(dots)
Head average resistance
(Ω)
Head resistance dispersion
(%)
Logic power supply
(V)
Platen roller diameter
(φmm)
Glaze structure Outline (*)
WxLxH
(mm)
G5053F 57 300 672 2900±10% ±2
(neighboring±1%)
5 Recommendation
φ20
PEG 16x70x5.8
[Feature]
  • Near edge structure.
  • Straight pass printing.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.
G5053B 57 300 672 2900±10% ±2
(neighboring±1%)
5 Recommendation
φ20
PEG 16x70x5.8
[Feature]
  • Near edge structure.
  • Straight path printing.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.
G5543A 57 300 672 2900±10% ±2
(neighboring±1%)
5 Recommendation
φ20
PEG 16x70x5.8
[Feature]
  • New near edge structure.
  • Straight path printing.
  • Easy mechanical adjustment.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.
G5105B 57 300 672 2700±10% ±2
(neighboring±1%)
5 Recommendation
φ20
PEG 25x70x5.8
[Feature]
  • Near edge structure.
  • Straight path printing.
  • High speed printing by parallel data transfer.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.
G5167B 40 200 320 1125±12% ±8% 5 Recommendation
φ20
PEG 14x46x5.8
[Feature]
  • Near edge structure.
  • Straight path printing.
  • Suitable for rewritable printer.
BHC5504SS 129.8 300 1536 1400±12% ±8%
(neighboring±2%)
5 Recommendation
φ20
Convex ceramics substrate 35x140x7
[Feature]
  • Convex ceramics structure.
  • Straight path printing.
  • Very easy mechanical adjustment.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.
BHC52**SR  59.5 300 704 1900±15% ±10
(neighboring±8%)
5 Recommendation
φ20
Convex ceramics substrate 14x70x20
[Feature]
  • Convex ceramics structure.
  • Straight path printing.
  • Very easy mechanical adjustment.
  • Suitable for dye diffusion thermal transfer system / thermal transfer.

To Top

CUSTOM PRODUCTS

Feature
  • Print width is from 1 inch to 26 inch, resolution is from 200 dpi to 1200 dpi, we provide TPH depending on customer's application.
  • For applications requiring special media, we improved media damage and enabled high density printing.
  • For applications requiring high level image, we can provide beautiful and uniformed printing by equalizing print quality.
  • We provide TPH with IC optimized for various operating methods depending on customer's application.
  • We provide TPH which is suitable to make prepress plate by 14 inches up to 26 inches with high resolution by one piece.

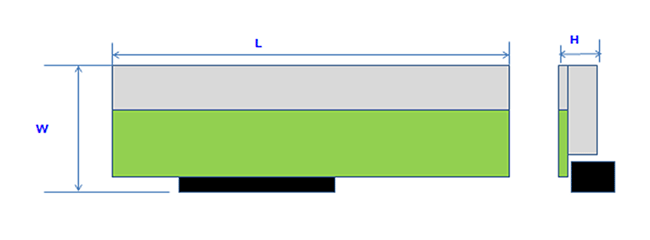

(*) About size

Model Name Print width
(mm)
Heater resolution
(dpi)
Number of Heater
(dots)
Head average resistance
(Ω)
Head resistance dispersion
(%)
Logic power supply
(V)
Platen roller diameter
(φmm)
Glaze structure Outline (*)
WxLxH
(mm)
G5609 155.8 300 1844 5300±10% in one head±2%
neighboring±1%
5 Recommendation
φ16
PEG 31x170x6
[Application]
  • Industrial Photo Printer
G5610 160 1200 7584 17800±12.5% with offset trimming 5 Recommendation
φ16
PEG 26x170x6
[Application]
  • Amusement Photo Printer
G5611 356 320 4480 7000±15% in one head±10%
neighboring±5%
5 Recommendation
φ25.4
PEG 53x373x15
[Application]
  • Medical Dry Imager

We also support custom products not on the above list.
Please contact our sales department, if you have question.
