Thermal Print Head(TPH) of Toshiba Hokuto Electronics Co.
is a device with fine patterning and wire bonding by thin-film method, providing compact sizes and high reliable performance.
We meet the diverse needs of our customers by implementing an extensive product lineup of print width varying from 2 inches to 14 inches and also resolution ranging from 200 dpi(dot per inch) to ultra-high resolution of 1,200 dpi.
Your various needs, including mechanical and electrical interfaces, will be supported with our wealth of knowledge and flexibility.
Handling guide

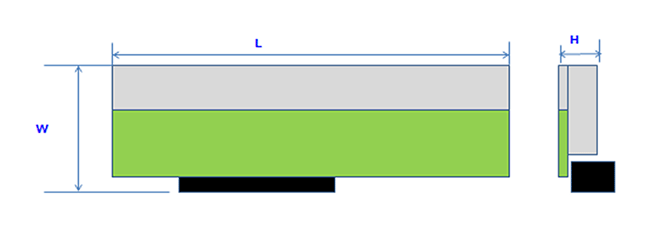

(*) About size
![[Image] About size notation](../../../assets/img/products/thermal_img_05.gif)
Products
BARCODE LABEL PRINTER

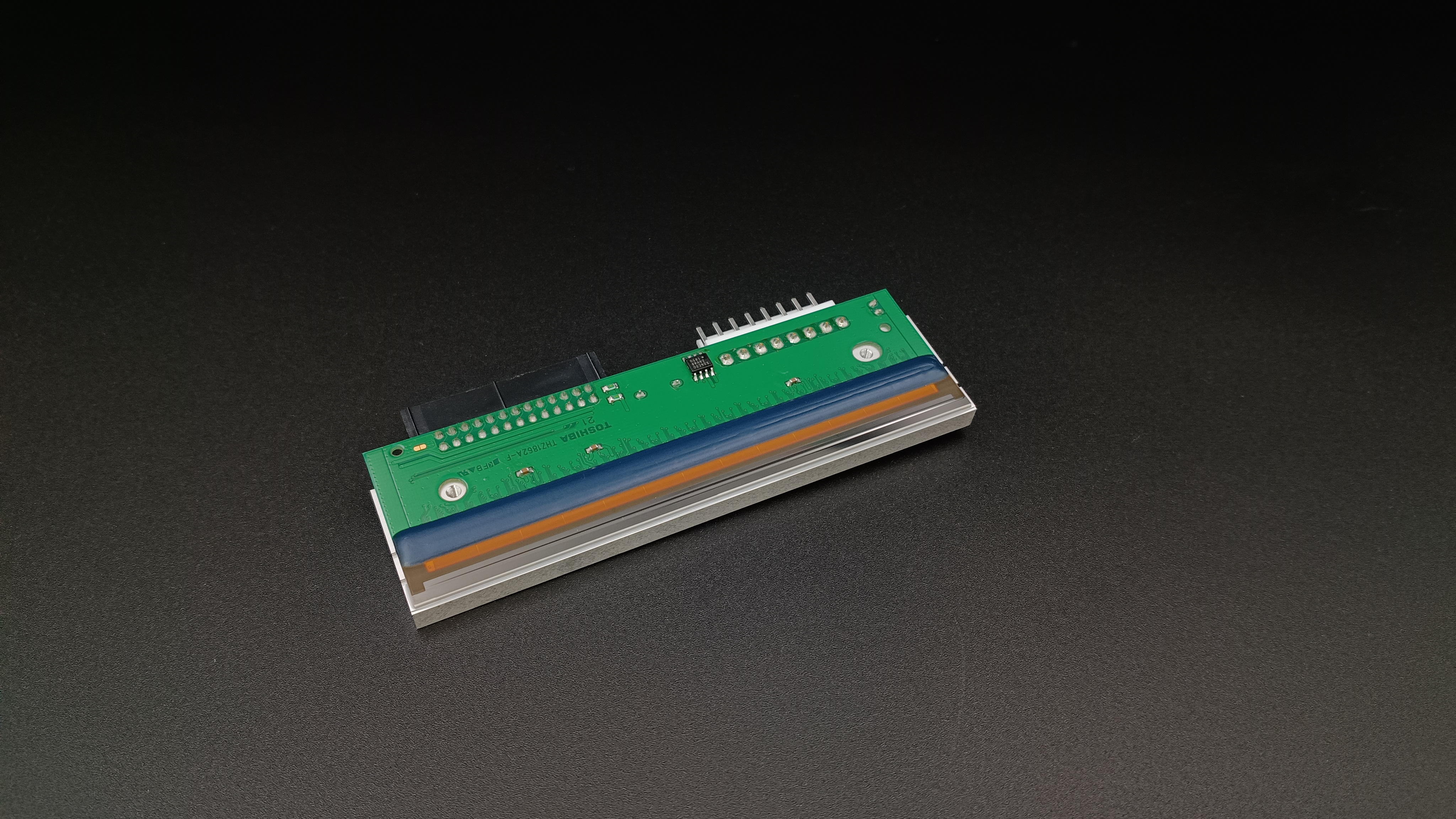

![[Image] 2M231](../../../assets/img/products/thermal_img_01.jpg)
INDUSTRIAL LOGISTICS MODEL

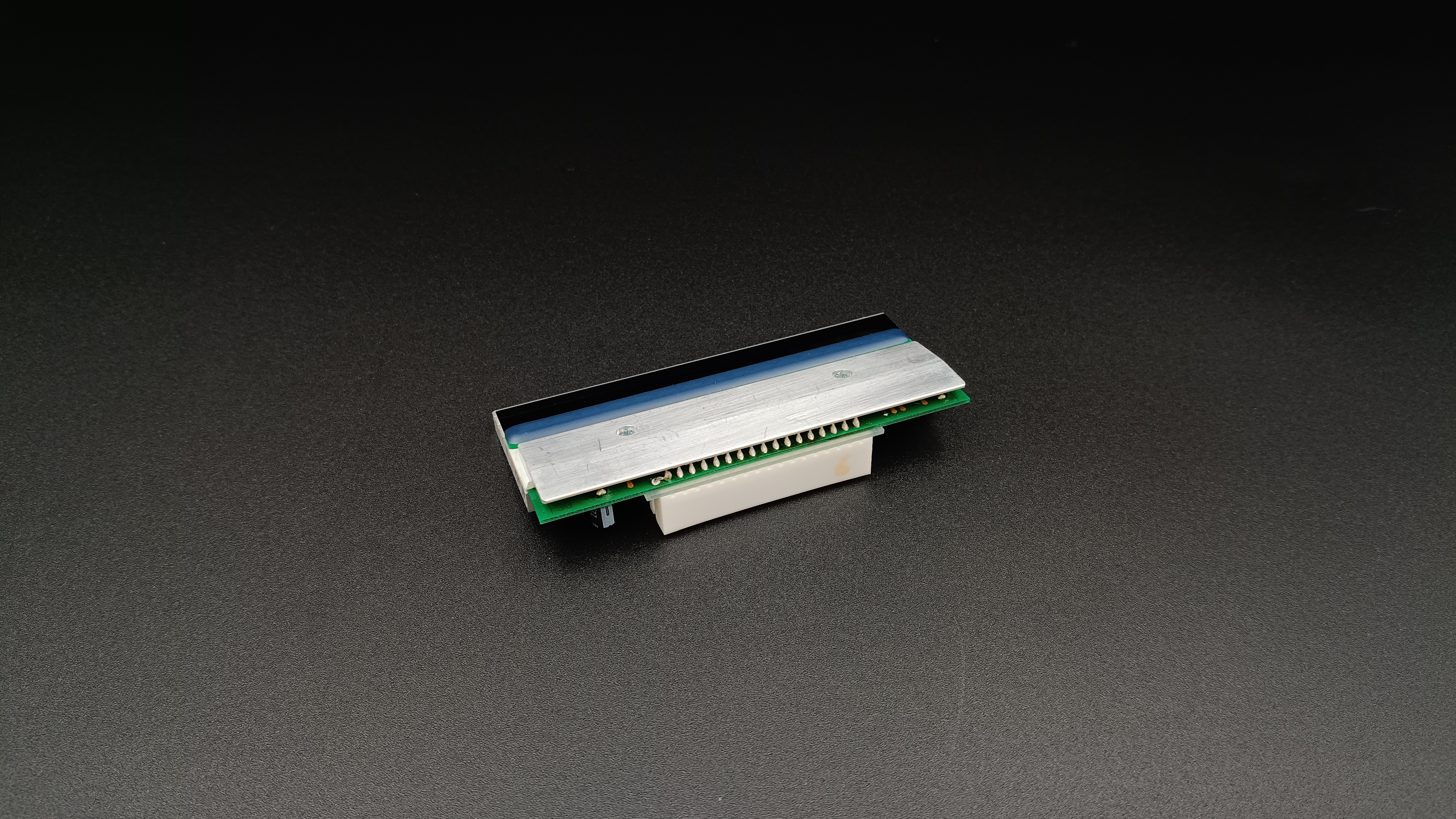

![[Image] 2M240](../../../assets/img/products/thermal_img_02.jpg)
FOOD MODEL
TAG & TICKET PRINTER
![[Image] 2M303](../../../assets/img/products/thermal_img_03.jpg)
CARD PRINTER
![[Image] 2M304](../../../assets/img/products/thermal_img_04.jpg)
BARCODE LABEL PRINTER
INDUSTRIAL LOGISTICS MODEL
Feature
We provide high speed,
high durability, high reliability thermal print head for bar code label printer for industry and logistics system.
High resolution for micro label. High durable coating structure for large quantities printing.
| Model Name |
Print width (mm) |
Heater resolution (dpi) |
Number of Heater (dots) |
Head average resistance (Ω) |
Head resistance dispersion (%) |
Logic power supply (V) |
Platen roller diameter (φmm) |
Glaze structure |
Outline (*) WxLxH (mm) |
|---|---|---|---|---|---|---|---|---|---|
| G5206D | 108 | 203 | 864 | 800±12% | ±8% | 3.3/5 | Recommendation φ14 |
PEG | 21x118x5 |
| ［Feature］・High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5138G | 108 | 203 | 864 | 880±6% | ±8% | 3.3/5 | Recommendation φ14 |
PEG | 25x118x5 |
| ［Feature］ ・Compact size by U-SHAPE heater. | |||||||||
| G5138G | 108 | 203 | 864 | 780±6% | ±8% | 3.3/5 | Recommendation φ14 |
PEG | 25x118x5 |
| ［Feature］・High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5140F | 104 | 203 | 832 | 726±12% | ±8% | 3.3/5 | Recommendation φ14 |
PEG | 46x118x6 |
| ［Feature］・Standard Type. | |||||||||
| G5329C | 104 | 203 | 832 | 600±8% | ±8% | 3.3/5 | Recommendation φ20 |
PG | 46x118x6 |
| ［Feature］ ・Low resistance version of G5140F. ・High-speed printing by step-less structure. | |||||||||
| G5266B | 104 | 203 | 832 | 800±12% | ±8% | 3.3/5 | Recommendation φ16.7 |
PG | 30x125x6 |
| ［Feature］・Near edge structure. ・Hot peeling of ribbon. ・High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5292E | 105.7 | 300 | 1248 | 1250±6% | ±8% | 3.3/5 | Recommendation φ16 |
PEG | 21x118x5 |
| ［Feature］・High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5139G | 106 | 300 | 1248 | 1500±6% | ±8% | 3.3/5 | Recommendation φ18 |
PEG | 25x118x5 |
| ［Feature］・Compact size by U-SHAPE heater. | |||||||||
| G5139L | 106 | 300 | 1248 | 1500±6% | ±8% | 3.3/5 | Recommendation φ18 |
PEG | 25x118x5 |
| ［Feature］・High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5141F | 105.7 | 300 | 1248 | 1130±12% | ±8% | 3.3/5 | Recommendation φ20 |
PEG | 46x118x6 |
| ［Feature］・Standard Type. | |||||||||
| G5330C | 105.7 | 300 | 1248 | 1000±8% | ±8% | 3.3/5 | Recommendation φ20 |
PG | 46x118x6 |
| ［Feature］ ・Low resistance version of G5141F. ・high-speed printing by step-less structure. | |||||||||
| G5267A | 106.6 | 305 | 1280 | 1000±12% | ±8% | 3.3/5 | Recommendation φ16.7 |
PG | 30x125x6 |
| ［Feature］・Near edge structure. ・Hot peeling of ribbon. High durable coating. ・Compact size by U-SHAPE heater. | |||||||||
| G5228A | 106.6 | 600 | 2496 | 1800±12% | ±8% | 5 | Recommendation φ20 |
PEG | 46x118x6 |
| ［Feature］・High-quality printing by 600dpi resolution. | |||||||||
| G5228B | 106.6 | 600 | 2496 | 1800±12% | ±8% | 5 | Recommendation φ20 |
PEG | 46x118x6 |
| ［Feature］ ・High-quality printing by 600dpi resolution. ・High durable coating. | |||||||||
| G5331B | 106.6 | 600 | 2496 | 1500±10% | ±8% | 3.3/5 | Recommendation φ20 |
PEG | 46x118x6 |
| ［Feature］ ・High-quality printing by 600dpi resolution. ・High speed printing. ・5 step history control IC installed. | |||||||||
| G5213 | 168 | 203 | 1344 | 800±12% | ±8% | 3.3/5 | Recommendation φ20 |
PEG | 46x187x10 |
| ［Feature］・Compact size by U-SHAPE heater. | |||||||||
| G5214 | 168 | 300 | 1984 | 1000±12% | ±8% | 3.3/5 | Recommendation φ20 |
PEG | 46x187x10 |
| ［Feature］・Compact size by U-SHAPE heater. | |||||||||
| BHP4A01SS | 256 | 300 | 1984 | 1000±12% | ±8% | 5 | MAXφ20 | PG | 46x274x10 |
| ［Feature］・Suitable for B4size thermal transfer printer. | |||||||||
| BHP9407FS | 112 | 609 | 2688 | 3500±12% | ±8% | 5 | Recommendation φ20 |
PG | 44x120x6 |
| ［Feature］・High-quality printing by 600dpi resolution. ・High speed printing. ・5 step history control IC installed. | |||||||||
FOOD MODEL
Feature
By optimizing the structure of coating,
we provide a reliable and highly durable thermal print head that can print labels without a backing sheet and film labels used in food factories,
packing centers, etc. Moreover, it provides high-speed and high-quality printing by history control IC.
| Model Name |
Print width (mm) |
Heater resolution (dpi) |
Number of Heater (dots) |
Head average resistance (Ω) |
Head resistance dispersion (%) |
Logic power supply (V) |
Platen roller diameter (φmm) |
Glaze structure |
Outline (*) WxLxH (mm) |
|---|---|---|---|---|---|---|---|---|---|
| BHP4249FS | 56 | 203 | 448 | 600±12% | ±8% | 5 | MAXφ20 | PG | 45x65x6 |
| ［Feature］ ・High-quality printing. ・High speed printing. ・5-step history control IC installed. | |||||||||
| G5201F | 56 | 203 | 448 | 960±12% | ±8% | 5 | Recommendation φ12 |
PEG | 18x66x5 |
| ［Feature］ ・High durable coating. ・High reliability against corrosion. ・Compact size by U-SHAPE structure. | |||||||||
| BHP6214HS | 59 | 305 | 704 | 1500±12% | ±8% | 5 | Recommendation φ20 |
PG | 38x70x8 |
| ［Feature］・High-quality printing. ・High speed printing. ・3-step history control IC installed. | |||||||||
| G5279C | 80 | 203 | 640 | 850±12% | ±8% | 3.3 to 5.0 | Recommendation φ15 |
PG | 21x87x5 |
| ［Feature］・High durable coating. ・High reliability to corrosion. ・Compact size by U-SHAPE structure. | |||||||||
| LH4114WK | 80 | 203 | 640 | 850±12% | ±8% | 5 | Recommendation φ20 |
FG | 38x91x6 |
| ［Feature］・Thin glaze structure. ・Improved heat accumulation. | |||||||||
| G5364A | 81 | 300 | 960 | 1200±6% | ±8% | 3.3 to 5.0 | Recommendation φ15 |
PG | 21x91x5 |
| ［Feature］・High durable coating. ・High reliability to corrosion. ・Compact size by U-SHAPE structure. | |||||||||
TAG & TICKET PRINTER
Feature
TPH with straight path structure can print on thick media, such as thick tickets and electronic tags .
Moreover, it provides high-speed and high-quality printing by history control IC.
| Model Name |
Print width (mm) |
Heater resolution (dpi) |
Number of Heater (dots) |
Head average resistance (Ω) |
Head resistance dispersion (%) |
Logic power supply (V) |
Platen roller diameter (φmm) |
Glaze structure |
Outline (*) WxLxH (mm) |
|---|---|---|---|---|---|---|---|---|---|
| BHC4215SS | 56 | 203 | 448 | 970±15% | ±10% | 5 | Recommendation φ20 |
PG | 23x65x7 |
| ［Feature］・Convex ceramics structure. ・Straight path. | |||||||||
| BHP6212FS | 53 | 305 | 640 | 1500±12% | ±8% | 5 | MAXφ20 | PG | 45x80x6 |
| ［Feature］ ・High-quality printing. ・High speed printing. ・5-step history control IC installed. | |||||||||
| BHC4262FR | 56 | 203 | 448 | 450±15% | ±10% | 5 | Recommendation φ20 |
PG | 19x70x24 |
| ［Feature］・High-quality printing. ・High speed printing. ・5-step history control IC installed. | |||||||||
| DHP9203FS | 58.67 | 610 | 1408 | 2500±12% | ±8% | 3.3 to 5.0 | MAXφ20 | PG | 44x69x6 |
| ［Feature］・High-quality printing by 600dpi resolution. ・High speed printing. ・5 step history control IC installed. | |||||||||
| LH6404LK | 128 | 305 | 1536 | 1500±12% | ±8% | 5 | MAXφ20 | PG | 38x140x6 |
| ［Feature］・High-quality printing. ・High speed printing. ・3-step history control IC installed. | |||||||||
CARD PRINTER
Feature
Straight pass ,by near-edge structure and structure using convex ceramics,
enable to print on firm media like plastic card.
It provides high-quality color printing to dye diffusion thermal transfer system by optimizing heater substrate.
(Convex ceramic structure needs costumise support.)
| Model Name |
Print width (mm) |
Heater resolution (dpi) |
Number of Heater (dots) |
Head average resistance (Ω) |
Head resistance dispersion (%) |
Logic power supply (V) |
Platen roller diameter (φmm) |
Glaze structure |
Outline (*) WxLxH (mm) |
|---|---|---|---|---|---|---|---|---|---|
| G5053F | 57 | 300 | 672 | 2900±10% | ±2 (adjacent±1%) |
5 | Recommendation φ20 |
PEG | 16x70x5.8 |
| ［Feature］ ・Near edge structure. ・Straight pass printing. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
| G5053B | 57 | 300 | 672 | 2900±10% | ±2 (adjacent±1%) |
5 | Recommendation φ20 |
PEG | 16x70x5.8 |
| ［Feature］・Near edge structure. ・Straight path printing. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
| G5543A | 57 | 300 | 672 | 2900±10% | ±2 (adjacent±1%) |
5 | Recommendation φ20 |
PEG | 16x70x5.8 |
| ［Feature］・New near edge structure. ・Straight path printing. ・Easy mechanical adjustment. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
| G5105B | 57 | 300 | 672 | 2700±10% | ±2 (adjacent±1%) |
5 | Recommendation φ20 |
PEG | 25x70x5.8 |
| ［Feature］・Near edge structure. ・Straight path printing. ・High speed printing by parallel data transfer. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
| G5167B | 40 | 200 | 320 | 1125±12% | ±8% | 5 | Recommendation φ20 |
PEG | 14x46x5.8 |
| ［Feature］・Near edge structure. ・Straight path printing. ・Suitable for rewritable printer. | |||||||||
| BHC5504SS | 129.8 | 300 | 1536 | 1400±12% | ±8% (adjacent±2%) |
5 | Recommendation φ20 |
Convex ceramic substrate |
35x140x7 |
| ［Feature］・Convex ceramics structure. ・Straight path printing. ・Very easy mechanical adjustment. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
| BHC52**SR | 59.5 | 300 | 704 | 1900±15% | ±10% (adjacent±8%) |
5 | Recommendation φ20 |
Convex ceramic substrate |
14x70x20 |
| ［Feature］・Convex ceramics structure. ・Straight path printing. ・Very easy mechanical adjustment. ・Suitable for dye diffusion thermal transfer system / thermal transfer. | |||||||||
CUSTOM PRODUCTS
Feature
- Print width is from 1 inch to 26 inch, resolution is from 200 dpi to 1200 dpi, we provide TPH depending on customer's application.
- For applications requiring special media, we improved media damage and enabled high density printing.
- For applications requiring high level image, we can provide beautiful and uniformed printing by equalizing print quality.
- We provide TPH with IC optimized for various operating methods depending on customer's application.
- We provide TPH which is suitable to make prepress plate by 14 inches up to 26 inches with high resolution by one piece.
| Model Name |
Print width (mm) |
Heater resolution (dpi) |
Number of Heater (dots) |
Head average resistance (Ω) |
Head resistance dispersion (%) |
Logic power supply (V) |
Platen roller diameter (φmm) |
Glaze structure |
Outline (*) WxLxH (mm) |
|---|---|---|---|---|---|---|---|---|---|
| G5609 | 155.8 | 300 | 1844 | 5300±10% | Inside the head ±2% adjacent bits ±1% |
5 | Recommendation φ16 |
PEG | 31x170x6 |
| ［Application］・Industrial Photo Printer | |||||||||
| G5610 | 160 | 1200 | 7584 | 17800±12.5% | With correction cropping | 5 | Recommendation φ16 |
PEG | 26x170x6 |
| ［Application］・Amusement Photo Printer | |||||||||
| G5611 | 356 | 320 | 4480 | 7000±15% | Inside the head ±10% adjacent bits ±5% |
5 | Recommendation φ25.4 |
PEG | 53x373x15 |
| ［Application］・Medical Dry Imager | |||||||||
